一、Features 主要特點
Pull pressure sensorl
Sensor elastic body made of alloysteel or stainless steel
Adhesive sealed, surface plating
Waterproof, anti-corrosion,
protection grade reaches IP66.
拉壓力傳感器
傳感器彈性體采用合金鋼或者不銹鋼材質(zhì)
膠密封處理 ,表面鍍鎳
防水,防腐蝕,防護等級達到 IP66
二、Capacities 量程
100kg、200kg、300kg、500kg、700kg、1t、2t、3t、5t、10t 、15t、20t
三、Specification 技術(shù)參數(shù)
Rated Output |
額定輸出 |
2.0mV/V ±0.1% |
Zero Balance |
零點平衡 |
±1% of rated output |
Creep after 30 minutes |
蠕變 |
±0.05% of rated output |
Nonlinearity |
非線性 |
±0.05% of rated output |
Hysteresis |
滯后 |
±0.05% of rated output |
Repeatability |
重復性 |
±0.05% of rated output |
Temp. effect on output |
靈敏度溫漂 |
≤0.02% of applied output/oC |
Temp. effect on zero |
零點溫漂 |
≤0.02% of applied output/oC |
Safe Temp. Range |
可用溫度范圍 |
-10oC to + 70oC |
Temp. Compensated |
溫度補償范圍 |
-10oC to + 40oC |
Safe Overload |
安全載荷 |
150% |
Input Impedance |
輸入阻抗 |
387 ohm ± 20 ohm |
Output Impedance |
輸出阻抗 |
350 ohm ± 5 ohm |
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
Maximum Excitation |
較大激勵電壓 |
15V DC/AC |

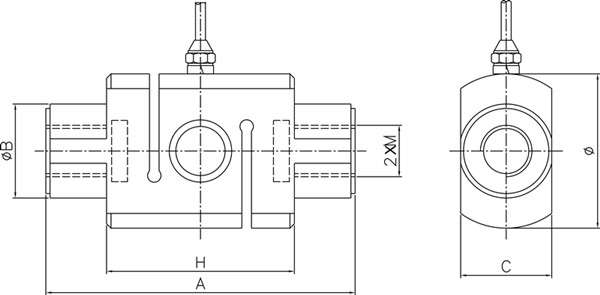

四、Dimensions 尺寸
量程 |
A |
H |
ΦB |
Φ |
M |
C |
0.1-0.5t |
88 |
58 |
28 |
44 |
16×1.5 |
26 |
0.7t |
88 |
58 |
32 |
44 |
16×1.5 |
30 |
1-5t |
120 |
68 |
51 |
63 |
22 |
48 |
7-15t |
138 |
94 |
60 |
76 |
30 |
56 |
20t |
156 |
108 |
68.5 |
88 |
36×3 |
76 |
